StableNet® Foreign Data Wrapper

Prerequisites

A PostgreSQL database with a user that is allowed to modify database objects is required. The foreign data wrapper has to be installed on the same server instance the database server is running.

Example: Create database infosim owned by role infosim:

export DB_NAME=infosim
mkdir -p /var/lib/pgsql/custom/user_tblspc/${DB_NAME}_tblspc/tab_space/${DB_NAME} \
 /var/lib/pgsql/custom/user_tblspc/${DB_NAME}_tblspc/idx_space/${DB_NAME} && \
 chown -R postgres:postgres /var/lib/pgsql/custom/user_tblspc
psql -Upostgres -c "CREATE ROLE $DB_NAME WITH LOGIN PASSWORD '$DB_NAME';"
psql -Upostgres -c "CREATE TABLESPACE ${DB_NAME}_tab OWNER $DB_NAME \
LOCATION '/var/lib/pgsql/custom/user_tblspc/${DB_NAME}_tblspc/tab_space/$DB_NAME';"
psql -Upostgres -c "CREATE TABLESPACE ${DB_NAME}_idx OWNER $DB_NAME \
LOCATION '/var/lib/pgsql/custom/user_tblspc/${DB_NAME}_tblspc/idx_space/$DB_NAME';"
psql -Upostgres -c "CREATE DATABASE $DB_NAME WITH OWNER $DB_NAME TEMPLATE template0 \
TABLESPACE ${DB_NAME}_tab ENCODING 'UTF8' LC_COLLATE 'de_CH.UTF-8' LC_CTYPE 'de_CH.UTF-8';"

Standard Installation

Install RPM from SKOOR Repo

dnf install eranger-stablenet-fdw

Configuration

Config file

/etc/stablenet-fdw/stablenet-fdw.conf

[global]

#accept_insecure_certificate = false
                                        # Accept insecure certificates
                                        # (self-signed, expired, etc.)
                                        # when connecting to the web service
default_user =
                                        # Default user name for the web service.
                                        # This is used in case no authorization
                                        # is provided by the SQL client.
default_password =
                                        # Default password for the web service.
                                        # This is used in case no authorization
                                        # is provided by the SQL client.
#skoor_auth_url = http://localhost:8094
                                        # URL of the SKOOR web service
                                        # (default: http://localhost:8094)
                                        # This is used to get the StableNet®
                                        # auth tokens.

#oracle_client_lib_dir =
                                        # Path to the Oracle client library directory.
                                        # This is used to load the Oracle client library
                                        # for the Oracle database connection.
                                        # If omitted, the thin client is used which might have
                                        # problems connectiong to older Oracle databases.

#history_days = 365
                                        # Number of days the history data is loaded
                                        # from the StableNet® database.
                                        # Defaults to 365 days.

[database]

#host = localhost
                                        # Hostname of the PostgreSQL database
#port = 5432
                                        # Port of the PostgreSQL database
#database = infosim
                                        # Name of the PostgreSQL database
#user = infosim
                                        # User name of the PostgreSQL database
#password = infosim
                                        # Password of the PostgreSQL database
#schema = stablenet
                                        # Schema of the PostgreSQL database
                                        # (default: stablenet)
#measurement_data_table = stablenet_measurement_data
                                        # Name of the measurement data table
                                        # (default: stablenet_measurement_data)

[retention_days]

#raw = 1
#minutely = 1
#five_minutely = 14
#fifteen_minutely = 31 # ~1 month
#hourly = 93 # ~3 months
#daily = 365 # ~1 years
#weekly = 365 # ~1 years
#monthly = 1825 # ~5 years
#quarterly = 1825 # ~5 years
#yearly = 3650 # ~10 years

[webservice]                            # use te form werbservice_<server_id>
                                        # to configure multiple StableNet® servers
                                        # (see below).

url =
                                        # URL of StableNet® the web service
database_connection =
                                        # Connection string to the StableNet® database.
                                        # This is used for the measurement data sync.
                                        # The connection string must be in the format:
                                        # MySQL: mysql+pymysql://<user>:<password>@<host>:3306/<database>
                                        # Oracle: oracle+oracledb://<user>:<password>@<host>:1521/?service_name=<service>
                                        # Connection info can be found on the StableNet server in
                                        # /opt/stablenet/snmw/wildfly/standalone/configuration/standalone.xml (<datasources>).
                                        # It's usually a good idea to use a different user and service than the one used by StableNet.
#ping_measurement_filter =
                                        # Filter for the ping measurement (e.g. 'Device Domain' eq 'Test').
#snmp_measurement_filter =
                                        # Filter for the SNMP measurement (e.g. 'Device Domain' eq 'Test').
#snmp_indexes =
                                        # List of SNMP indexes to be used for the SNMP measurement.

#[webservice_<server_id>]               # Optional, if multiple StableNet® servers
                                        # are used. Replace <server_id> with a unique
                                        # identifier for the StableNet® server.
                                        # Only alphanumeric lowercase characters are allowed.
                                        # Please note, that every webservice section
                                        # must have a unique identifier if multiple
                                        # StableNet® servers are used. if the server_id
                                        # changes, a resync of the measurement data is needed
                                        # because the measurement ID change (<measurment_id>@<server_id>).
                                        # If you already have a webservice configured without server_id,
                                        # then it's recommended to leave the existing webservice without
                                        # server_id and add a new webservice with server_id. This avoids
                                        # a resync of the measurement data.

#server_name =
                                        # Unique name of the connected StableNet®
                                        # server. This should be a human readable
                                        # name, not a technical identifier.
                                        # Defaults to server_id if omitted.
#url =
                                        # URL of the StableNet® the web service

Options can also be provided by environment variables using the STABLENET_FDW_WEBSERVICE_ prefix and the option name in upper case (e.g. STABLENET_FDW_WEBSERVICE_URL). For the global settings, GLOBAL has to be omitted from the ENV key (e.g. STABLENET_FDW_DEFAULT_USER ).

url is the base URl of the StableNet® API web service. It usually has the form https://<host>:5443/api/1.

Multiple StableNet® instances can be defined using multiple webservice sections with unique server_id suffixes. The server_id is used as an internal identifier to e.g. get the matching authorization string from SKOOR Auth. An appropriate server_name should be set which is used to identify the server in the foreign and aggregated tables. This can also be configured using environment variables (e.g. STABLENET_FDW_WEBSERVICE_URL_TEST, STABLENET_FDW_WEBSERVICE_SERVER_NAME_TEST).

After a config change, the PostgreSQL Server has to be restarted.

systemctl restart postgresql-13

Initializing foreign tables

Initialized the foreign tables needed by the foreign data wrapper.

/opt/stablenet-fdw/init-foreign-tables.sh -h <host> -p <port> -d <database> -U <user> -o <owner>

e.g.

/opt/stablenet-fdw/init-foreign-tables.sh -U postgres -h localhost -p 5432 -d infosim -o infosim

This command should be performed after every update of eranger-stablenet-fdw to get new table definitions.

Testing the Connection

psql -h localhost -p 5432 -U infosim -d infosim -c "SELECT * from stablenet.stablenet_info;"

This should return the number of devices in the connected StableNet® instance.

Data aggregation (Deprecated)

Initializing aggregated data

Initializes the Timescale hypertable needed for aggregated metric data.

/opt/stablenet-fdw/init-aggregated-data.sh -h <host> -p <port> -d <database> -U <user> -o <owner> \
-i <interval> [-m <metric_keys>] [-f <tag_filter>] [-r <retention>]

-m Comma separated list of metric keys to pre aggregate. Can be omitted to preload data for all metrics, but this might take a very long time. E.g. "SNMP_1,SNMP_2,SNMP_3"

-i Interval to preload data. e.g. 6 months, 1 week, 5 days

-f Tag filter to filter measurements e.g. "'Device Domain' eq 'Test'"

-r Data retention policy, e.g. "1 year"

Initializing aggregated data refresher

Creates a TimescaleDB job to periodically update aggregated data for given metrics

/opt/stablenet-fdw/init-aggregated-data-refresher.sh -h <host> -p <port> -d <database> -U <user> -o <owner> \
[-m <metric_keys>][-f <tag_filter>]

-m Comma separated list of metric keys to aggregate. Can be omitted to refresh data for all metrics. E.g. "SNMP_1,SNMP_2,SNMP_3"

-f Tag filter to filter measurements e.g. "'Device Domain' eq 'Test'"

Add / remove metrics

Docker Compose installation

Configuration

Add the following environment variables to the eranger-postgresql services environment section of the SKOOR docker-compose.yaml and set the STABLENET_FDW_WEBSERVICE_URL variable to a valid StableNet host URL:

      - STABLENET_FDW_WEBSERVICE_URL=https://<StableNet host>:5443/api/1
      - STABLENET_FDW_ACCEPT_INSECURE_CERTIFICATE=false
      - STABLENET_FDW_DEFAULT_USER=myuser
      - STABLENET_FDW_DEFAULT_PASSWORD=mypass
      - STABLENET_FDW_SKOOR_AUTH_URL=http://eranger-auth-${INSTANCE_NAME}:8094

Webservice container configuration

The webservice must be able to communicate with the eranger-auth component to authenticate requests to StableNet. In the eranger-webservice service section, add the following environment variable:

      - SKOOR_WEBSERVICE_auth_service_url=http://eranger-auth-${INSTANCE_NAME}:8094

Initializing foreign tables

In the running container, run the init-database.sh script to drop and recreate the stablenet schema (caution: all objects in the schema are dropped!).

Example with a customer database named infosim with user infosim (set the PGSQL_CONTAINER variable to the eranger-postgresql container name):

export PGSQL_CONTAINER=eranger-postgresql-<instance>
docker exec $PGSQL_CONTAINER /opt/stablenet-fdw/init-foreign-tables.sh -h localhost \
-p 5432 -d infosim -U postgres -o infosim

Run a data query in the dashboard to verify the foreign data wrapper:

SELECT * from stablenet.stablenet_info

Data aggregation

Initializing aggregated data

Initializes the Timescale hypertable needed for aggregated metric data.

docker exec $PGSQL_CONTAINER /opt/stablenet-fdw/init-aggregated-data.sh -h localhost \
-p 5432 -d infosim -U postgres -o infosim -i <interval> [-m <metric_keys>] [-f <tag_filter>] [-r <retention>]

-m Comma separated list of metric keys to pre aggregate. Can be omitted to preload data for all metrics, but this might take a very long time.

-i Interval to preload data. e.g. 6 months, 1 week, 5 days

-f Tag filter to filter measurements e.g. "'Device Domain' eq 'Test'"

-r Data retention policy, e.g. "1 year"

Initializing aggregated data refresher

Creates a TimescaleDB job to periodically update aggregated data for given metrics

docker exec $PGSQL_CONTAINER /opt/stablenet-fdw/init-aggregated-data-refresher.sh -h localhost \
-p 5432 -d infosim -U postgres -o infosim [-m <metric_keys>] [-f <tag_filter>]

-m Comma separated list of metric keys to aggregate. Can be omitted to refresh data for all metrics. E.g. "SNMP_1,SNMP_2,SNMP_3"

-f Tag filter to filter measurements e.g. "'Device Domain' eq 'Test'"

Integrate into SKOOR

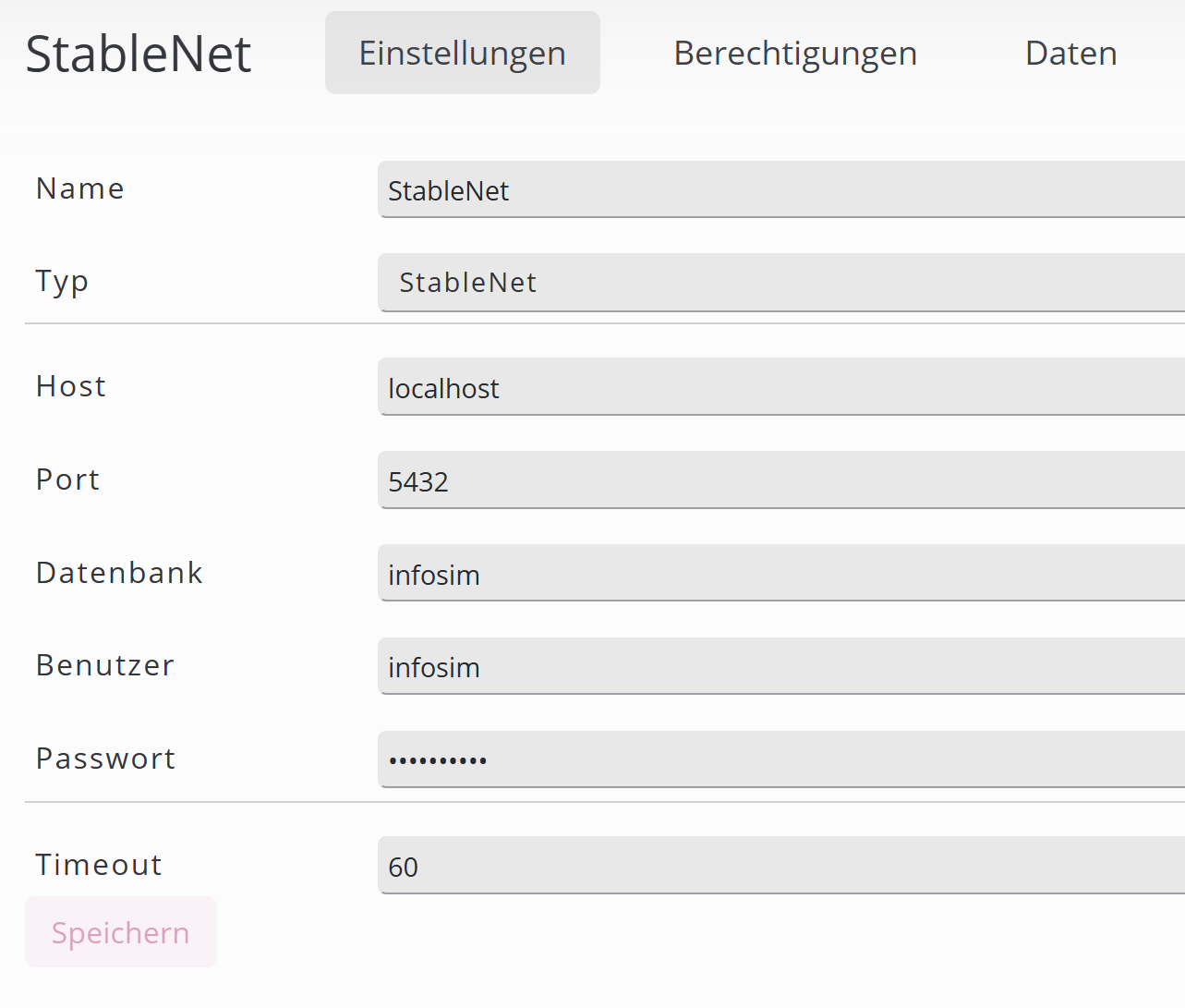

The StabeleNet FDW can be integrated by creating a new data source in the Data & Objects section.


After saving, the lightbulb in the navigation should turn green.


The foreign tables can be inspected on the Data tab.


While some foreign tables can be inspected right away (e.g. stablenet_taggable_device), others need some mandatory qualifiers and can not be previewed. See table below for mandatory qualifiers.

Foreign Tables

Name

Fields

Qualifiers

stablenet_info

server_id TEXT
name TEXT
version TEXT
technical_version TEXT

stablenet_taggable

server_id TEXT
domain TEXT
id TEXT
name TEXT
display_name TEXT
state TEXT
attribute_tags JSONB
custom_tags JSONB
tag_filter TEXT

domain TEXT (mandatory)
id BIGINT
tag_filter TEXT

stablenet_taggable_device

server_id TEXT
id TEXT
name TEXT
display_name TEXT
state TEXT
attribute_tags JSONB
custom_tags JSONB
tag_filter TEXT

id BIGINT
tag_filter TEXT

stablenet_taggable_interface

server_id TEXT
id TEXT
name TEXT
display_name TEXT
state TEXT
attribute_tags JSONB
custom_tags JSONB
tag_filter TEXT

id BIGINT
tag_filter TEXT

stablenet_taggable_job

server_id TEXT
id TEXT
name TEXT
display_name TEXT
state TEXT
attribute_tags JSONB
custom_tags JSONB
tag_filter TEXT

id BIGINT
tag_filter TEXT

stablenet_taggable_link

server_id TEXT
id TEXT
name TEXT
display_name TEXT
state TEXT
attribute_tags JSONB
custom_tags JSONB
tag_filter TEXT

id BIGINT
tag_filter TEXT

stablenet_taggable_service

server_id TEXT
id TEXT
name TEXT
display_name TEXT
state TEXT
attribute_tags JSONB
custom_tags JSONB
tag_filter TEXT

id BIGINT
tag_filter TEXT

stablenet_taggable_agent

server_id TEXT
id TEXT
name TEXT
display_name TEXT
state TEXT
attribute_tags JSONB
custom_tags JSONB
tag_filter TEXT

id BIGINT
tag_filter TEXT

stablenet_tag_category

server_id TEXT
domain TEXT
id TEXT
name TEXT
description TEXT

domain TEXT (mandatory)
id BIGINT

stablenet_measurement

server_id TEXT
id TEXT
name TEXT
description TEXT
tags JSONB
dest_device_id TEXT
dest_interface_id TEXT
agent_id TEXT
start_time TIMESTAMPTZ
end_time TIMESTAMPTZ
state TEXT
type TEXT
template_name TEXT
permanent BOOL
payload JSONB
active BOOL
tag_filter TEXT

tag_filter TEXT
dest_device_id BIGINT

stablenet_measurement_metric

server_id TEXT
measurement_id TEXT
data_id BIGINT
description TEXT
expected_interval INT
key TEXT
name TEXT
only_average BOOL
unit TEXT

measurement_id BIGINT

stablenet_measurement_data

server_id TEXT
measurement_id TEXT
metric_key TEXT
metric_name TEXT
"start" TIMESTAMPTZ
"end" TIMESTAMPTZ
bucket_size INT (seconds)
"timestamp" TIMESTAMPTZ
min double precision
max double precision
avg double precision
tag_filter TEXT

measurement_id BIGINT
metric_key TEXT
"start" TIMESTAMPTZ (mandatory)
"end" TIMESTAMPTZ (mandatory)
bucket_size INT (mandatory)
tag_filter TEXT

Although measurement_id and metric_key are optional, it’s not recommended to execute queries without. Doing so reads measurement data of all measurements and all metrics which might take a long time to read and puts some heavy load on the StableNet server. Only advisable for very short time ranges < 1h. If multiple measurements and metrics are needed, table stablenet_measurement_data_aggregated should be used.

Aggregated measurement data

Aggregated by hour, automatically updated every hour. Can be used to perform analytics queries over a wide range of measurements and over large time ranges.

Is basically a Timescale hypertable (https://docs.timescale.com/ ). Chunk size is 7 days, chunks are compressed after 7 days.

Name

Fields

stablenet_measurement_data_aggregated

server_name TEXT
measurement_id BIGINT
metric_key TEXT
metric_name TEXT
"timestamp" TIMESTAMPTZ NOT NULL
min double precision
max double precision
avg double precision

stablenet_measurement_data_aggregated only contains data for configured metric keys.
